Description
Brand: CP-Carrillo
Manufacturer’s Part Number: C-QD4>-66200H
Part Type: Connecting Rods

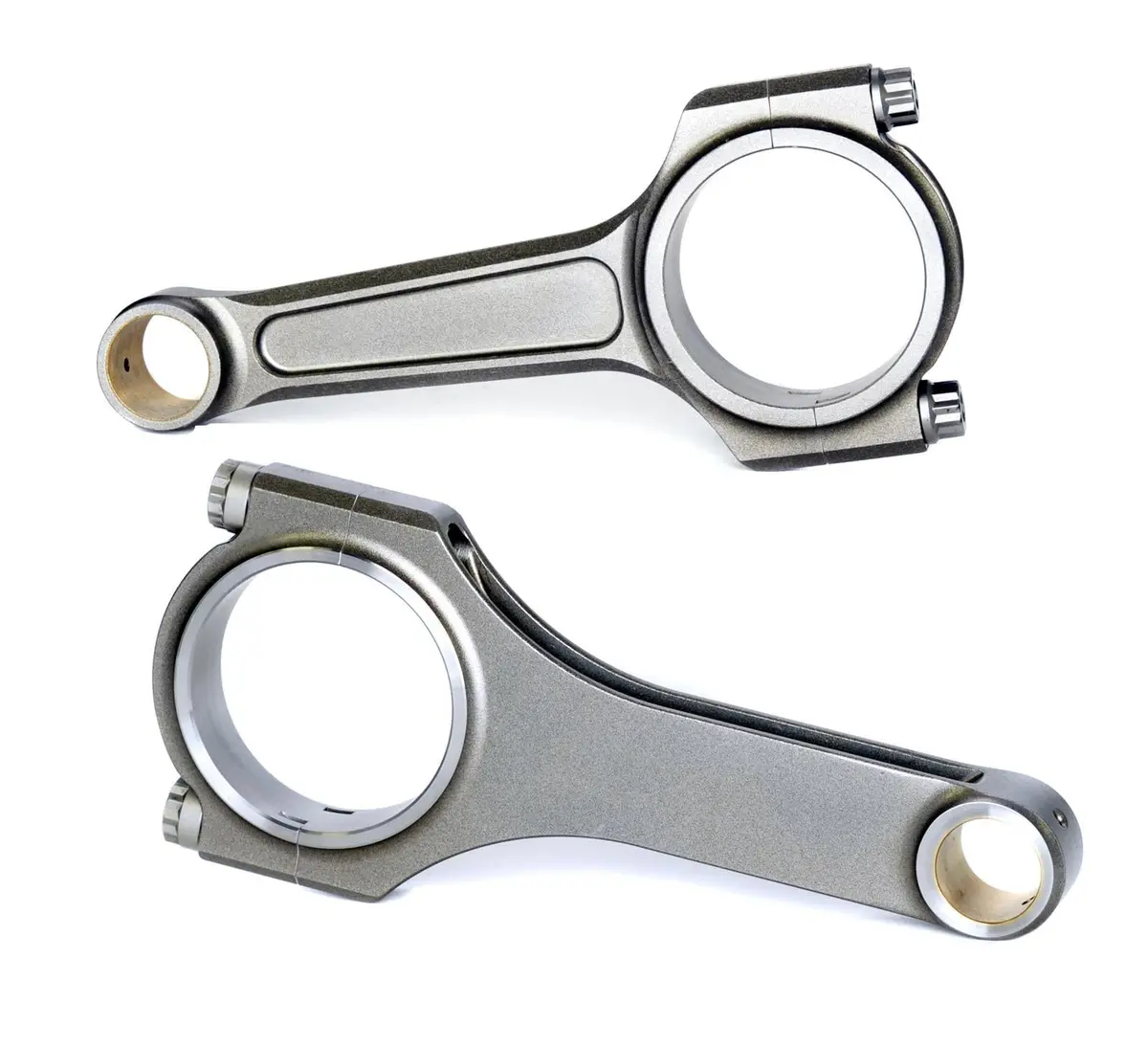

Product Line: Carrillo Pro-H Straight H-Beam Connecting Rods
Automotive Fittings Part Number: CNN-CQD4X66200H0
Connecting Rod Length Center to Center (in.): 6.200 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.927 in.
Rod Journal Diameter (in.): 1.889
Big End Bore Diameter (in.): 2.0152
Quantity: Sold individually.
Cap Retention Style: Cap screw
Big End Width (in.): 0.940
Clearanced for Stroker: No
Connecting Rod Bolt Brand: WMC
Connecting Rod Bolt Diameter: 3/8 in.
Connecting Rod Bolt Material: H-11 tool steel
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 583
Pin End Width (in.): 1.000 in.
Weight Matched Set: No
Remanufactured: No
Magnafluxed: No
Connecting Rod Color: Shot-peened
Notes: Custom pistons are required when using connecting rods with any length other than OE.
Description:
Lead the way with strong Carrillo Pro-H connecting rods. Able to handle the most abusive forces of your race engine, these straight H-beams are the stoutest configurations available. Obsessed with perfection, Carrillo produces their Pro-H connecting rods in small batches. They mesh quality materials, precision forging, excellent craftsmanship, and high-tech designs to deliver a flawless performance for your race engine. Applications are available for many venues of motorsports. Drive your racer to the winner’s circle with the high performance “choice connection”–Carrillo Pro-H straight H-beam connecting rods.
